ОВС-25М self-mobile

cleaner of heap upgraded

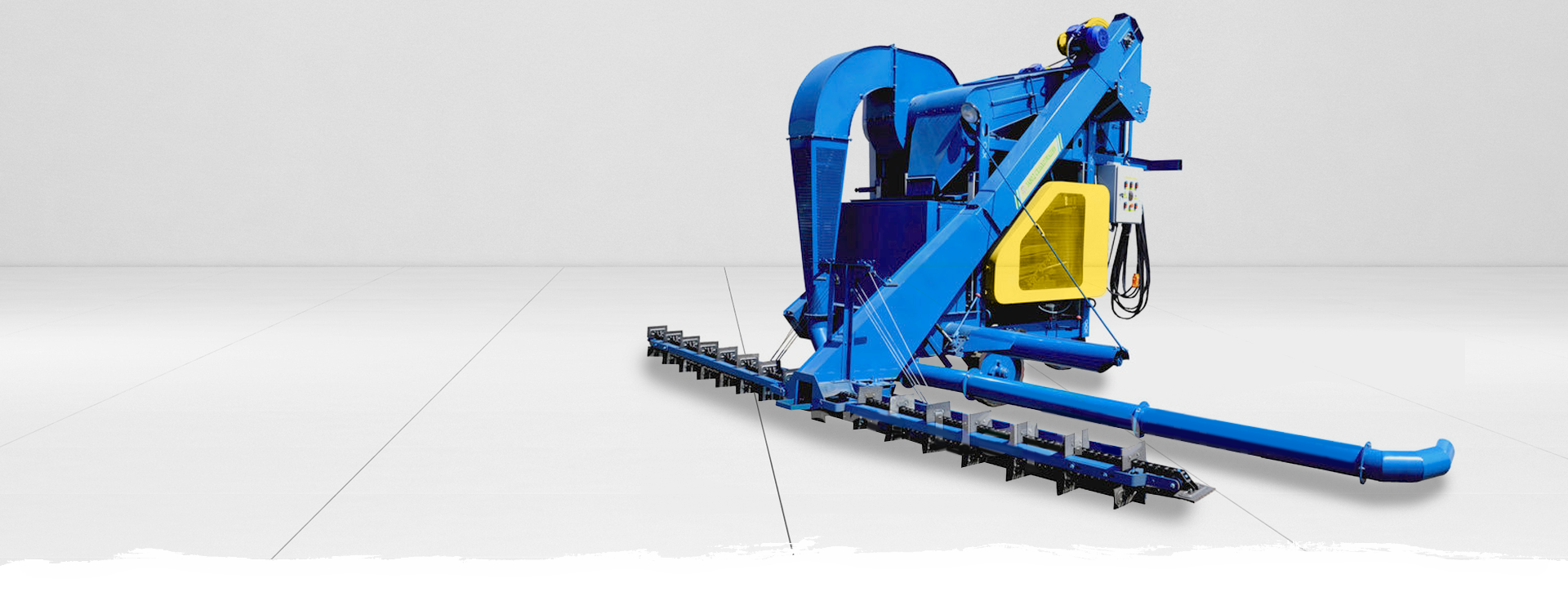

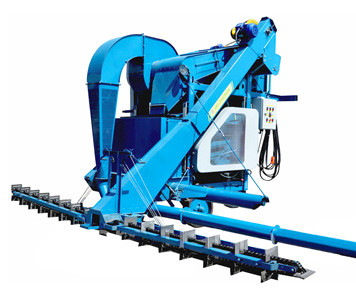

ОВС-25М ― self-mobile cleaner of heap upgraded with a capacity of 25 tons per hour.

ОВС-25М is a modernized modification of the scraper cleaner of the heap of self-propelled OVS-25 and has the following improvements compared to it:

  • the presence of separately switched on lighting - forward, backward and the illumination of sieve boot, which allows you to work in the dark or in warehouses without lighting;
  • the presence of remote control through the remote control, which increases the usability of OVS-25M;
  • headlights, remote control and control panel have a voltage of 24 volts, which increases safety;
  • the presence of a protective bumper that prevents blows of cars and trailers to the OVS-25M receiving chamber.

The heap cleaner upgraded ОВС-25М, like other models of the ОВС-25 grain cleaning machines we produce, is a self-propelled machine. ОВС-25М independently rides and loads itself with grain without the help of other mechanisms or personnel. Loading is carried out by a chain elevator, which is located in front of the ОВС-25М and picks up grain at a width of 5.3 meters (see video). Grain cleaning in ОВС-25М is carried out both by adjustable air flow and sieves, which allows to obtain high quality cleaning. The sieves are automatically cleaned by the brushes integrated in the ОВС-25М.

The ОВС-25М self-propelled modernized grain cleaning machine has the highest quality and safety, is certified according to the technical standards of the European Union, the Customs Union and Ukraine.

ОВС-25М is the best self-propelled technique for high-quality and high-performance cleaning of grain, heap, cereals, legumes, oilseeds, industrial crops, corn, sorghum, sunflower, rape from impurities  in warehouses. ОВС-25М is also perfect for farmers who do not have equipment for loading grain.

You can also choose the model of the OVS-25M grain cleaning machine with a cyclone, hopper, auger loader or an extended unloading elevator.

Type of machines self-propelled
Productivity, tone per hour up to 25 depending on the type of grain
Type of drive electric
Capacity, kWt 9,15
Electric power consumption, no more, kW / h per 1t 0,36
Mass in full completeness, kg 1880
Height in working position, m 3,3
Length in working position, m 4,8
Width in working position, m 5,9
Additional safety system  yes
Lighting back and forth yes
Bumper yes
Remote control of movement  yes



Advantages of the modernized ОВС-25M grain cleaning machine:

  • the presence of lighting, which allows you to work at night in warehouses without lighting;
  • the presence of remote control through the remote control, which increases the usability of ОВС-25M;
  • headlights, remote control and control panel have a voltage of 24 volts, which increases safety;
  • the presence of a protective bumper that prevents blows of cars and trailers to the ОВС-25M receiving chamber.

The use of any models of ОВС-25 self-propelled grain cleaning machines of our production is several times more economical in comparison with the use of stationary grain cleaning machines or complexes, because:

  • the whole process of processing grain crops has been simplified - there is no need to design and build stationary complexes, access roads, service additional vehicles, loading equipment and personnel;
  • when using self-propelled grain cleaning machines, cleaning is carried out directly at the grain warehouse and in this connection there is no need to transport grain from the warehouse to the warehouse, which reduces the cost of loading, transportation and unloading;
  • self-propelled grain cleaning machines themselves move around the warehouse and load themselves with grain heaps without the help of other machines or people;
  • ОВС-25 - is a universal grain cleaning machine that can clean any type of grain or seed;
  • self-propelled grain cleaning machines can load grain into a truck or trailer with a side height of up to 2,7 meters or big bags without the help of grain throwers, loaders, elevators and other equipment;
  • high performance of our self-propelled grain cleaning machines - up to 25 tons per hour, which allows you to quickly clean a large amount of grain;
  • ОВС -25 can be used both indoors and outdoors;
  • during the cleaning process at the ОВС-25, the moisture content of the cleaned grain is partially reduced;
  • ОВС-25 of any model is easy to transport, which is important for farms with several grain stores and agricultural cooperatives.

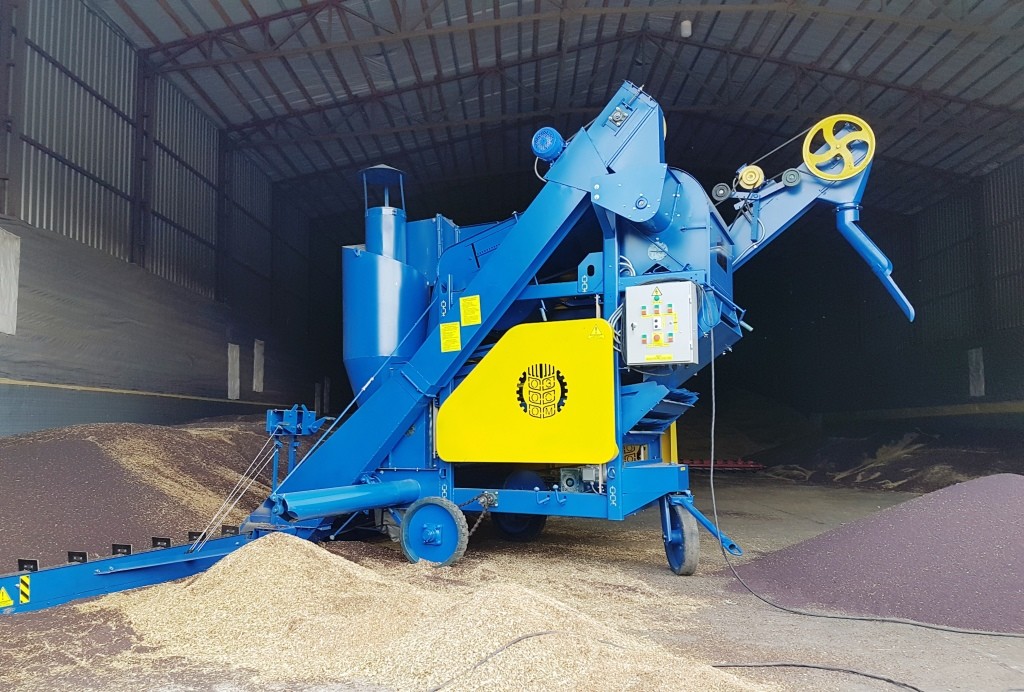

Look how ОВС-25M with a cyclone works
