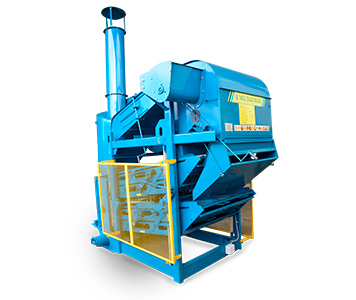

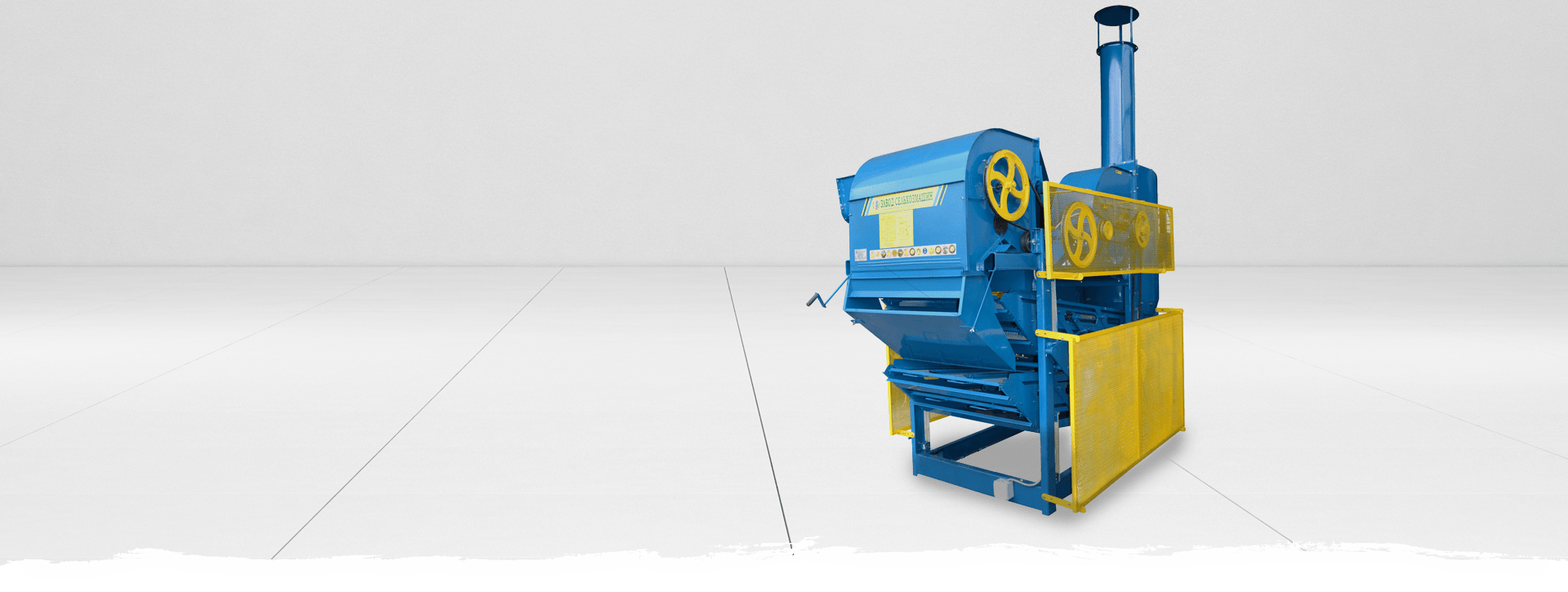

Unlike the usual OBC-25C model, the OBC-25CC grain cleaner has a built-in cyclone. The installation of a cyclone at OBC-25CC made it possible to solve the problem of cleaning the air emitted by the OBC-25C fan from dust and light impurities (small parts of leaves, grains, insects, sand, etc.). Previously, this was solved by installing a separate cyclone near the OBC-25C, conducting an air duct from the OBC-25C fan to it, and installing a clean air exhaust system from the cyclone. This led to significant additional costs and required a large free space. Now the plant of agricultural machinery has created a stationary heap cleaner OBC-25CC with an integrated cyclone that successfully copes with cleaning a heap of grain, saves space and money.
Grain cleaning with an aspiration system and sieves is performed in the same way as in the OBC-25C.
|Productivity, tons per hour||up to 20|
|Electric motor power, kW||4|
|Sieve number, pieces||8|
- High performance in small sizes
- The presence of an integrated cyclone
- Simple robust design
- Quick change sieves
- Brush cleaning sieves
- It can be in addition completed with elevators, a cyclone pipe and wheels
