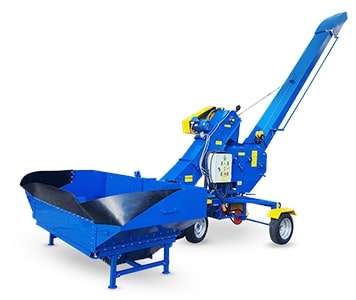

Self-propelled grain loader
with innovative hopper PZM-120B2
This grain loader has hopper size and
volume which changes in 2 minutes.
It is convenient when transporting
and loading any grain in any transport

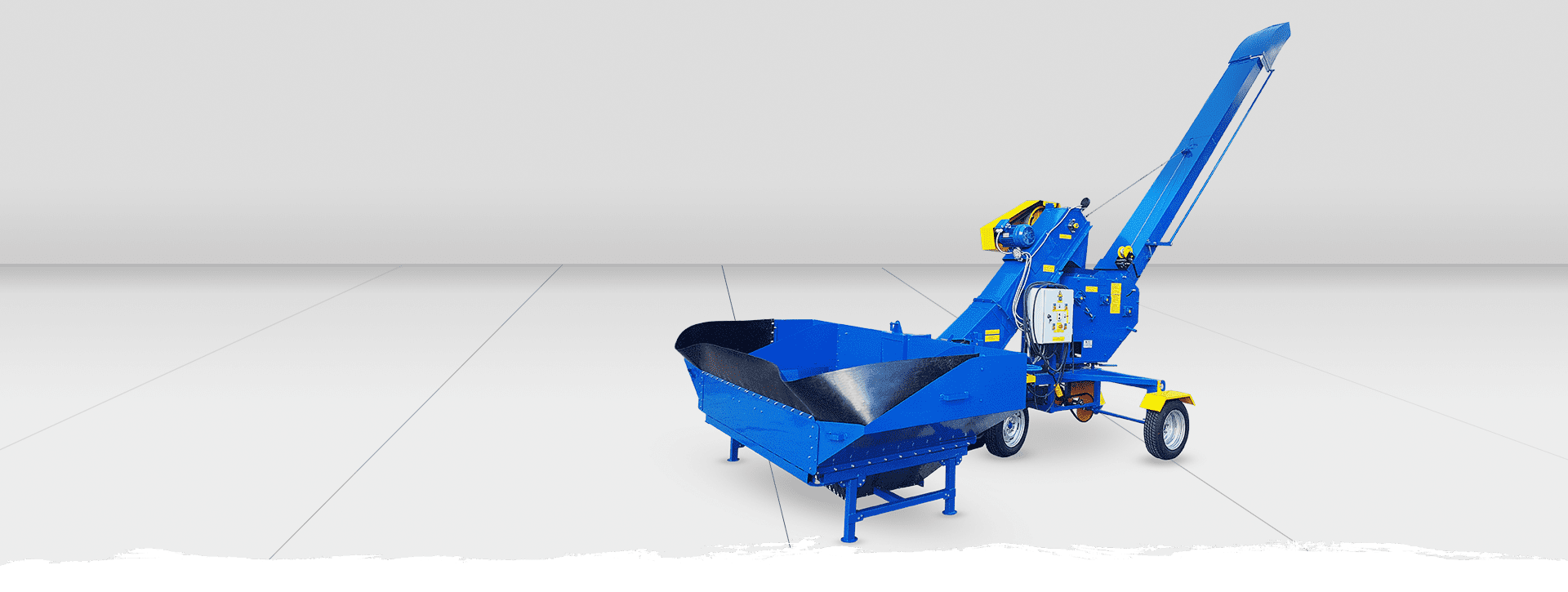

The PZM-120B2 grain loader is equipped with an innovative hopper and is designed for quick loading of any transport or warehouse. The productivity of the PZM-120B2 grain loader is up to 130 tons per hour (depending on the type of grain and seeds).
The main innovations in the design of the hopper of the PZM-120B2 grain loader are that it consists of a main hopper 1.9 m wide and additional 2 hopper enlargers, which are installed on the right and left side walls of the main hopper in 2 minutes without the help of tools. As a result, the width and volume of the hopper increase to 3 m and 2.9 cubic meters, respectively.
The innovative design of the PZM-120B2 grain loader hopper allows its owner to:
- it is easy to transport PZM-120B2 even in a small trailer by jeep, minibus, etc. without the need to remove the hopper (during transportation, the hopper enlargers are removed and folded inside the main hopper);

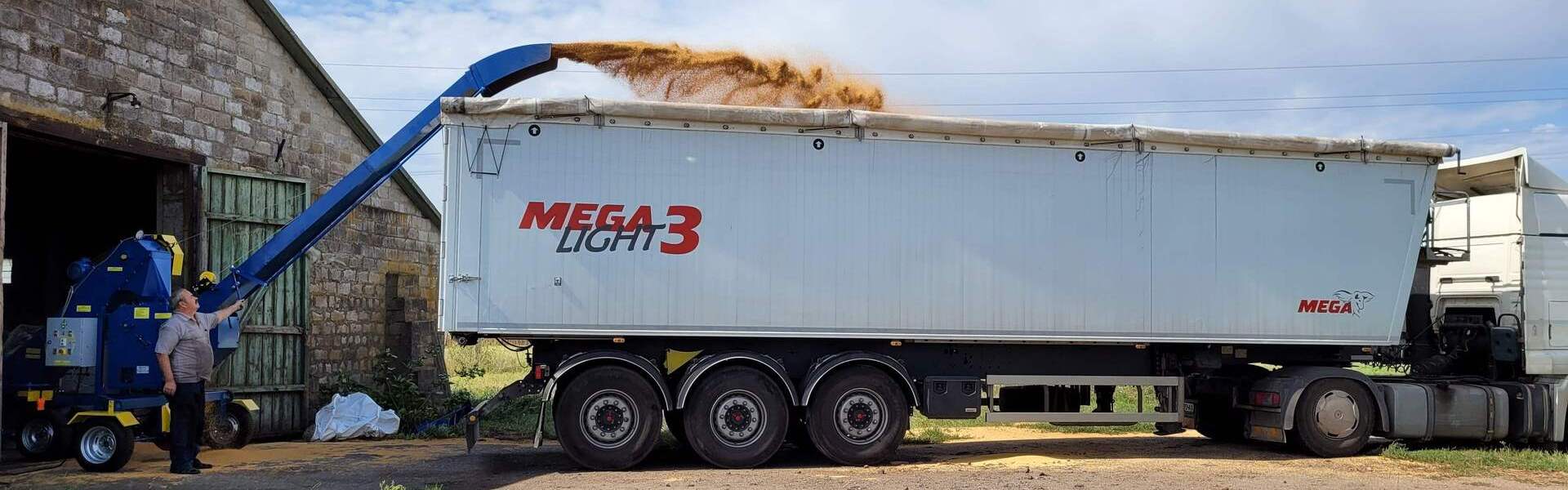

- accept grain from all types of grain carriers, trailers, big bags, front loader buckets, silos, augers, grain cleaning machines, etc. and then load it into transport or make piles of grain up to 9 m high;
- easy to maneuver between columns, supports or other obstacles in a warehouse with grain.
The width of the main hopper is sufficient to receive grain from trucks and trailers equipped with dosing gates located on the rear side. In the absence of dosing gates, hopper enlargers are installed on the main hopper within 2 minutes and grain is unloaded into the hopper through the tailgate of the grain carrier or trailer. The width of the hopper of the PZM-120B2 grain loader, together with the enlargers, is 3 meters, which also makes it possible to load grain into the hopper from the buckets of any front loaders (Manitou, JCB, LOVOL, KUHN, etc.).
The PZM-120B2 grain thrower with a hopper has been successfully supplied to farmers and grain traders from many countries, as well as to UN and USAID international projects.
Hopper PZM-120B2 has 4 supports of variable height, which securely fix it on the surface of the warehouse. You can also buy a grain thrower PZM-120, which has scraper feeders instead of a hopper.
Buying a grain loader with a PZM-120B2 hopper is an excellent solution for a farmer or grain trader who transships grain or has a grain warehouse.
| Loader type | self-propelled |
| Performance, tons per hour | up to 130 |
| Grain loading height, m | up to 9 (adjustable) |
| Grain flight range, m | up to 25 (adjustable) |
| Width of the main hopper, m | 1,9 |
| Hopper width with enlargers, m | 3 |
| Volume of the main hopper, m³ | 2,1 |
| Hopper volume with enlargers, m³ | 2,9 |
| Type of drive | electric |
| Capacity, kWt | 11,55 |
| Electricity consumption, kWh per t | 0,1 |
| Lighting | 2 spotlights |
| Mass, kg | 1354 |
Grain loader with hopper PZM-120B2 has the following advantages:
- innovative design of the hopper, which allows you to quickly change its volume and width from 2.1 to 2.9 cubic meters and 1.9 to 3 meters, respectively (this ensures comfortable transportation of the loader without the need to remove the hopper and the possibility of its use in small warehouses);
- a unique reliable design, in which the wishes of farmers and grain traders were embodied;
- the presence of lighting at 24 volts;
- the presence of a remote control;
- the possibility of additional equipment with scraper feeders, an auger instead of a trimmer, trimmer pipes of different lengths and frequency converters;
- the presence of 4 wheels and a differential, which increased maneuverability and facilitated the control of the PZM-120B2 grain loader;
- the presence of supports with varying heights, which securely fix the hopper on the surface of the warehouse;
- the wheels of the PZM-120B grain thrower have a large diameter, which allows it to easily overcome thresholds, etc.;
- the trimmer is perfectly balanced and has a patented design that prevents dust from sticking;
- the trimmer motor is protected from direct dust ingress;
- the trimmer pipe can be easily adjusted in height from 2.5 to 4.5m with a winch;
- the trimmer pipe allows you to load grain under the tailgate of a trailer or grain truck and can have a length of 0.7 to 4.9 m, depending on the need;
- easy and convenient maintenance;
- grain damage is not higher than 0.1%;
- modern bearings, electrical equipment and protection systems unified according to EU standards;
- low power consumption - 0.1 kWh per 1 ton of grain;
- high quality;
- fast payback.
Watch the video how the PZM-120B2 grain loader works
